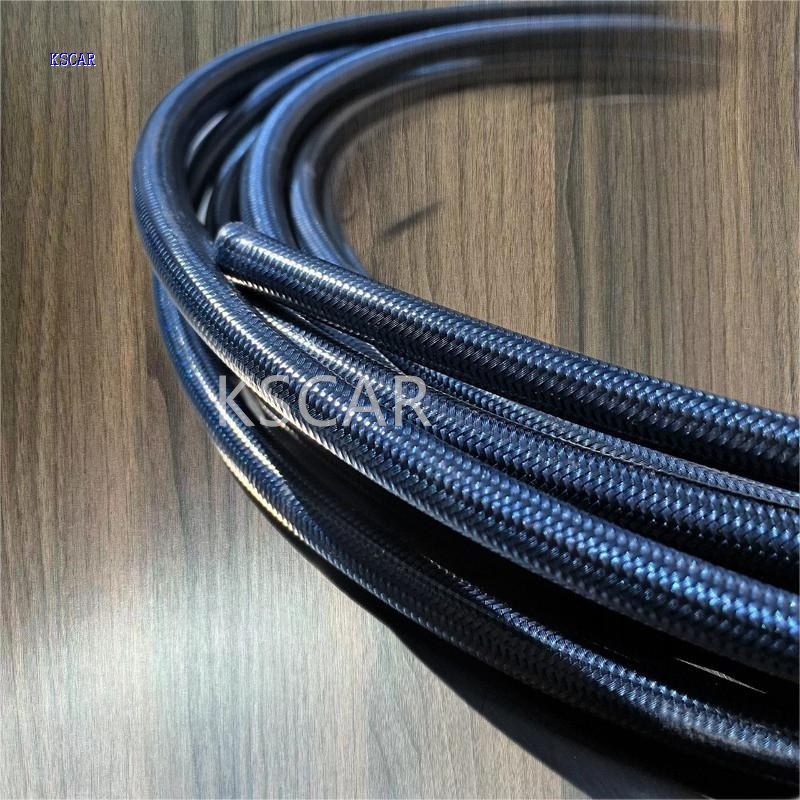

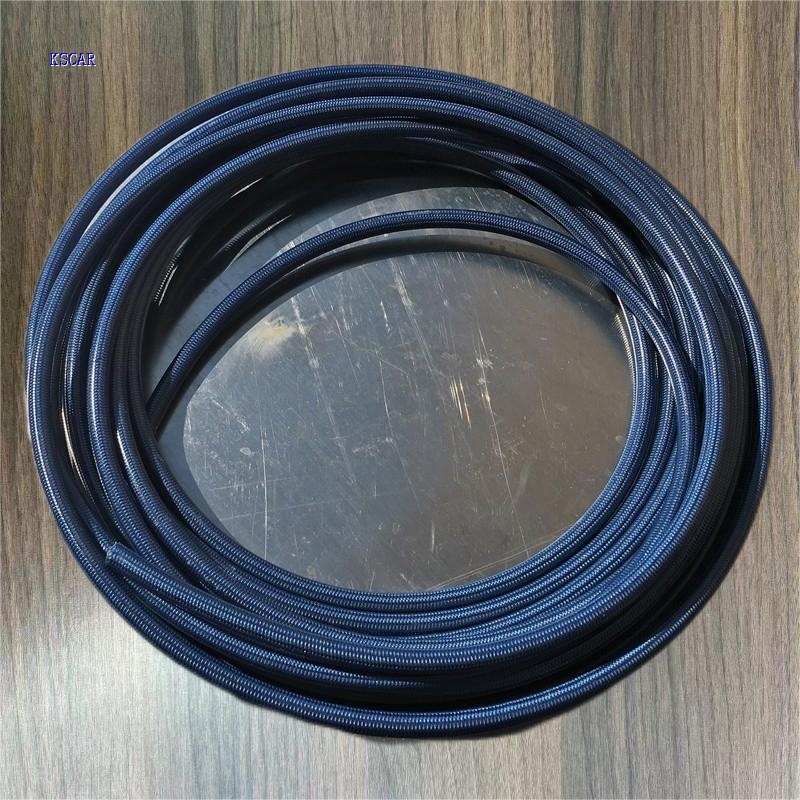

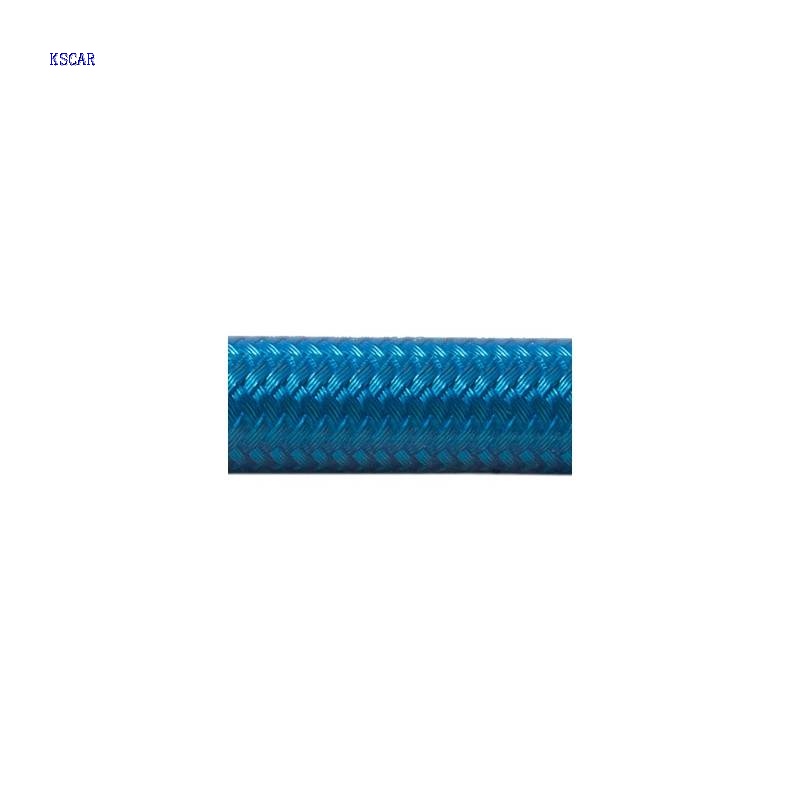

Blue PVC Cover Stainless Steel Braided PTFE Brake Hose Line

Blue PVC Cover Stainless Steel Braided PTFE Brake Hose Line

Product No.：20247714527
Online Inquiry

Blue PVC Cover Stainless Steel Braided PTFE Brake Hose Line
Brake Line Size： 3.2mm * 7.5mm
Brake Line Constuction: PTFE Inner hose + 304 Stainless steel reinforcement Braided + PVC/PU Cover
Application: Motorcycle Brake Hose line ,Car Brake Hose line ,Vehicle Brake Hose line,Automotive Brake Hose line，
Truck Brake Hose line,Trailer Brake Hose Line，Jeep brake Line

Inner Tube Hose	PTFE inner Hose
Reinforcement	304 Stainless Steel Reinforcement Braided
Outside Cover	PU/PVC Cover ，25Colors for your chose
Working Temperature Range	-70℃ ～ +260℃

Our stainless steel braided brake hose is made of high-quality 304 grade stainless steel wire. Using a PTFE inner tube,
Our brake hose is very resistant to expansion under high pressure and will not degrade due to contact with brake fluid.
Our stainless steel brake hose is covered with a wear-resistant PVC/PU plastic coating to protect the hose from abrasion.
The stainless steel outer braid has excellent resistance to heat, abrasion and mechanical damage, and will not absorb oil and fuel into its braid, thereby reducing weight

ITEM Number	Inner Hose Material	Stainless Steel Type	Inner Diamention I.D(mm)	Outside Diamention O.D(mm)	Working Pressure W.P(PSI)	Burst Pressue B.P(PSI)	Expansion Volume（cc/ft)
TF001	PTFE	304	3.2	7.2	4660	14000	0.05 cc/ft
