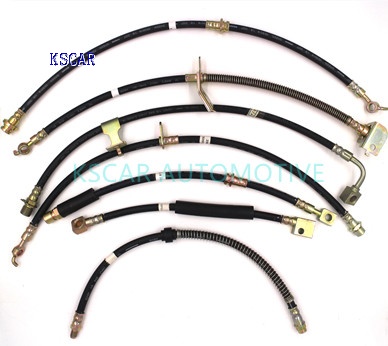

DOT SAE J1401 FMVSS106 Rubber Hydraulic OEM Brake Hose Pipe Assembly for Car
- Product No.：202551274436

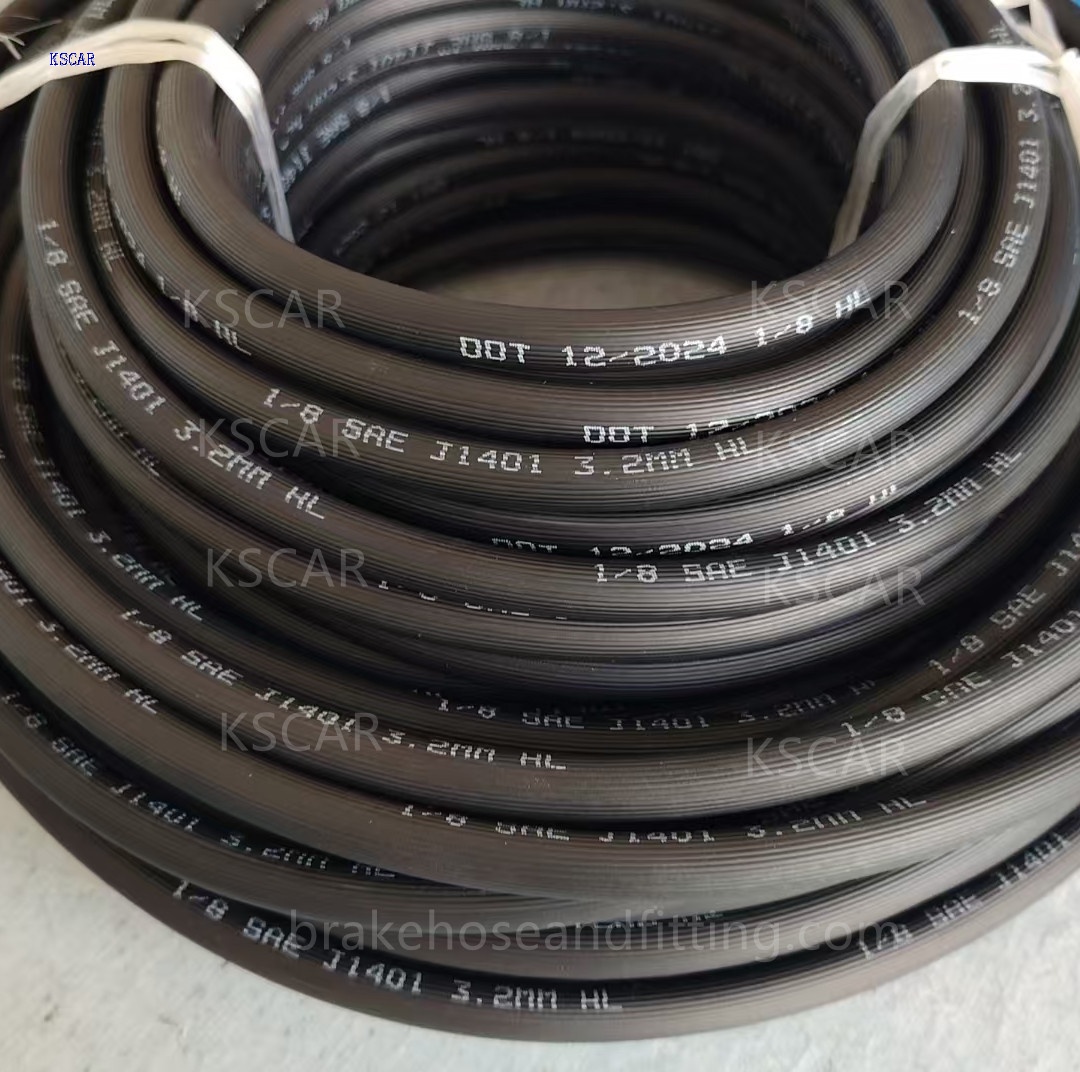

Brake Hose Size： 3.2mm * 10.5mm
Brake Line Constuction: EPDM+PET+EPDM+PET+EPDM
Application: Motorcycle Brake Hose ,Car Brake Hose ,Vehicle Brake Hose ,Automotive Brake Hose ，
Truck Brake Hose,Trailer Brake Hose
| Hose Construction | EPDM+PET+EPDM+PET+EPDM |
| Reinforcement | PET+PET or PVA +PVA |
| Outside Cover | EPDM |
| Working Temperature Range | -50℃ ～ +125℃ |
- Features：
- High Pressure Resistance
- Low Volume Expansion
Excellent Resistance of Heat
Cold Resistance
Aging Resistance
Abrassion Resistance
Ozone Resistance
Excellent Flexibility
Bursting Resistance
Reliable Braking Effects
Specifications：
| SIZE | NORMARL SIZE | ID | OD | LOW EXPANSION | D.O.T STANDARD | WEIGHT | PACKING | ||||
| ID | OD | MIN | MAX | MIN | MAX | MIN | MAX | 1000psi/1500psi | |||
| 1/8'' | 0.125'' | 0.415'' | 0.122'' | 0.130'' | 0.406'' | 0.421'' | 0.14cc/ft | 0.16cc/ft | 0.33cc/ft | 0.061lbs/ft | 656.2ft/ctn |
| 3.2mm | 10.5mm | 3.1mm | 3.3mm | 10.3mm | 10.7mm | 0.20cc/ft | 0.22cc/ft | 0.42cc/ft | 0.088kg/m | 5000px/ctn | |
| 3/16'' | 0.189'' | 0.492'' | 0.181'' | 0.197'' | 0.484'' | 0.500'' | 0.14cc/ft | 0.16cc/ft | 0.33cc/ft | 0.090lbs/ft | 590.5ft/ctn |
| 4.8mm | 12.5mm | 4.6mm | 5.0mm | 12.3mm | 12.7mm | 0.20cc/ft | 0.22cc/ft | 0.42cc/ft | 0.041kg/m | 4500px/ctn |
|
Specification ( US Element Lab test results )
|
Test Items |
Test Condition |
DOT Standard |
Test Results |
|
ID |
Normal |
3.2mm |
3.15～3.45mm |
|
OD |
Normal |
10.5mm |
10.30～10.70mm |
|
Expansion |
1000psi |
0.33cc/ft max. |
0.14～0.16cc/ft |
|
1500psi |
0.42cc/ft max. |
0.20～0.22cc/ft |
|
|
2900psi |
0.61cc/ft max. |
0.41～0.43cc/ft |
|
|
Burst |
4000psi×2min;pressure rated 25,000±10,000psi/min |
＞7000psi No seepage |
＞10,500psi |
|
Whip |
235～250psi |
＞35h |
＞70h |
|
Tensile |
tensile speed: 25±3mm/min |
＞1446N |
2400N |
|
Cold Bend |
-45℃ ～-48℃× 72h, 3-5s,bending180° |
No cracking |
No cracking |
|
Ozone |
100pphm×70h×40℃，7X |
No cracking |
No cracking |
|
Impulse |
146℃ 1±0.1min at 1600psi+70h |
＞7000psi No crack |
＞7500psi |
|
Compatibility |
120℃ × 70h |
＞7000psi No seepage |
＞8800psi |
|
Salt Spray |
5%NaCl, 24h, water cleanout in 35℃ |
No red rust |
No red rust |
|
Water Aging |
Water in 85±2℃,after 70h～72h 4000psi × 2min;pressure rated 25,000±10,000psi/min |
＞7000psi; ＞35h; ＞1446N |
＞10250psi;＞60h; ＞2200N |
