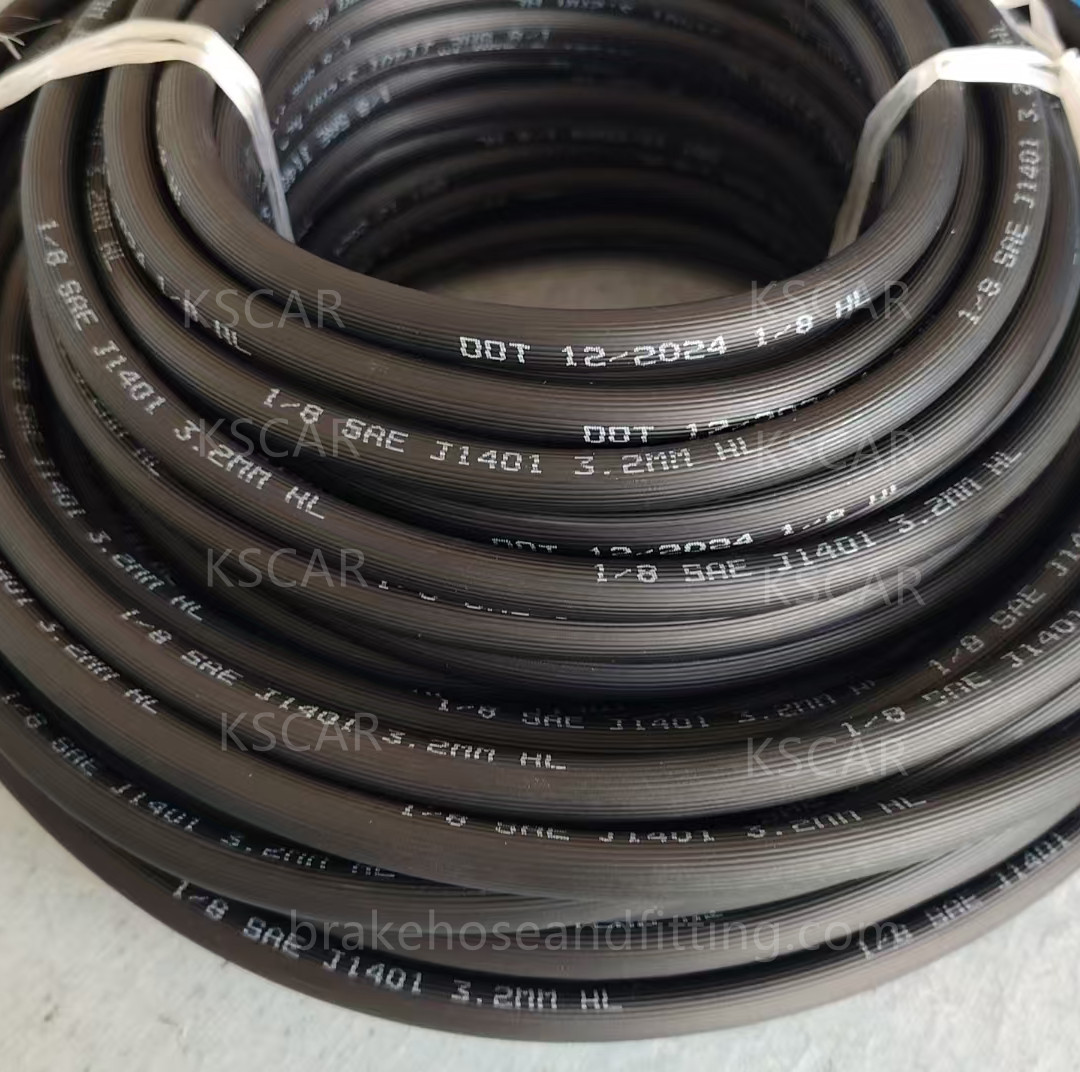

SAE J1401 Rubber Brake Hose

Product No.：20255792440
Online Inquiry

SAE J1401 Rubber Brake Hose
Brake Hose Size： 3.2mm * 10.5mm
Brake Line Constuction: EPDM+PET+EPDM+PET+EPDM
Application: Motorcycle Brake Hose ,Car Brake Hose ,Vehicle Brake Hose ,Automotive Brake Hose ，
Truck Brake Hose,Trailer Brake Hose

Hose Construction	EPDM+PET+EPDM+PET+EPDM
Reinforcement	PET+PET or PVA +PVA
Outside Cover	EPDM
Working Temperature Range	-50℃ ～ +125℃

Features：
High Pressure Resistance
Low Volume Expansion

High Tensile Strength
Excellent Resistance of Heat
Cold Resistance
Aging Resistance
Abrassion Resistance
Ozone Resistance
Excellent Flexibility
Bursting Resistance
Reliable Braking Effects
Specifications：

SIZE	NORMARL SIZE		ID		OD		LOW EXPANSION		D.O.T STANDARD	WEIGHT	PACKING
SIZE	ID	OD	MIN	MAX	MIN	MAX	MIN	MAX	1000psi/1500psi	WEIGHT	PACKING
1/8''	0.125''	0.415''	0.122''	0.130''	0.406''	0.421''	0.14cc/ft	0.16cc/ft	0.33cc/ft	0.061lbs/ft	656.2ft/ctn
1/8''	3.2mm	10.5mm	3.1mm	3.3mm	10.3mm	10.7mm	0.20cc/ft	0.22cc/ft	0.42cc/ft	0.088kg/m	5000px/ctn
3/16''	0.189''	0.492''	0.181''	0.197''	0.484''	0.500''	0.14cc/ft	0.16cc/ft	0.33cc/ft	0.090lbs/ft	590.5ft/ctn
3/16''	4.8mm	12.5mm	4.6mm	5.0mm	12.3mm	12.7mm	0.20cc/ft	0.22cc/ft	0.42cc/ft	0.041kg/m	4500px/ctn
